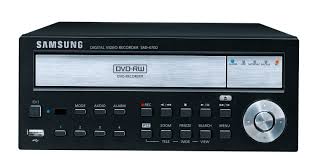

SRN470D RB 4ch DVR

SRN470D RB 4ch DVR | Model No: [SRN470D RB]

Call

H.264/MJPEG compression
Selectable recording rates
Analogue RGB 1280 x 1024 (60Hz) resolution
720p/1080p (60Hz) resolution
USB 2.0, 2 ports
Terminal 4 Inputs NO/NC
Terminal 2 relay outputs, NO/NC

Specifications

Interface Audio

Inputs-Output : N/A (Netowrk audio support, up to 16CH) N/A Netowrk audio support, up to 4CH)

Output : RCA x 1

Interface Audio Compression : G.711/723/726

Display

Video Inputs : Up to 4CH (4CIF 120/100fps)

Video Resolution : VGA, 4CIF, 1.3M, 2M, 3M, 5M

Protocol : Samsung

Interface Connections

Interface Connections Ethernet : 2RJ-45 10/100/1000 Base-T

USB : USB 2.0, 2 ports

eSATA : 2 ports

Application Support : Mouse, Remote controller

Supported PTZ Camera : Samsung network products (Network PTZ)

On screen display language

English : Yes

French : Yes

German : Yes

Italian : Yes

Spanish : Yes

Czech : Yes

Netherlands : Yes

Polish : Yes

Portuguese : Yes

Russian : Yes

Swedish : Yes

Greek : Yes

Hungarian : Yes

Croatian : Yes

Serbian : Yes

Romanian : Yes

Danish : Yes

Turkish : Yes

Performance Network

Bandwidth Control : Automatic

Max Remote Users : Search 3 / Live unicast 10 / Live multicast 20

Protocol Support : TCP/IP, DHCP,PPPoE, SMTP, HTTP, DDNS, RTP, RTSP

Monitoring : NET-i Viewer SmartViewer, Webviewer

Performance Smart Phone

Smart Phone Transmission Speed : Up to 48Mbps, Unlimited (48M)/2 /1.5 /1Mbps / 800 / 600 / 500 / 400 / 300 / 200 /100 / 50kbps

Interface Monitors

VGA : Analogue RGB 1280 x 1024 (60Hz) resolution

HDMI : 720p / 1080p (60Hz) resolution

General Mechanical

Dimension WxHxD : 215.0 x 88.0 x 352.0mm (8.46" x 3.46" x 13.86")

Weight with hard disk : Approx. 3Kg (6.61lb)

Rack Mount Kit : N/A

Web

Support Live : 1 / 4, Sequence

Performance Security

Password Protection : 1 Admin, 10 Group, 20 User per 1 group, User can be assigned authority for function

Data Authentication : Watermark

Performance Search and Playback

Search Mode : Date/Time, Event, Back up (*All search include preview function)

Playback Speed : Up to 25fps@1.3M, 2M, Up to 25fps@1280 x 720 (1M), Up to 100fps@704 x 576 (4CIF)

Playback Function : Fast forward / backward, Slow forward / backward, Step forward / backward

Interface Alarm

Alarm Inputs-Output : Terminal 16 inuts, NO/NC

Alarm Output : Terminal 4 relay outputs, NO/NC

Remote Notification : Notification via e-mail

Performance Recording

Compression : H.264, MJPEG

Recording Bit Rate : 64Mbps

Record Rate : Up to 100fps@1.3M,2M, Up to 100fps@1280 x 720 (1M), Up to 100fps@704 x 576 (4CIF)

Mode : Manual, Schedule(Continous /Event), Event (Pre/Post)

Overwrite Modes : Continuous

Pre-alarm : Up to 30 sec (5, 10, 20, 30 sec)

Post-alarm : Up to 6 hour (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour)

General Electrical

Input Voltage-Current : 12V DC adaptor, 4A, 1001 ~ 250VAC, 50/60Hz, 55W

Power Consumption : Max. 36W (With 1x HDD)

Performance Operating

Operating System Embedded : Linux

Performance Storage

Internal HDD : Up to 1 SATA HDD

Ethernet : Gigabit Ethernet x2

External HDD : eSATA interface

DVD Writer Back up : Yes

USB Back up : 2 USB ports

File Format Back up : BU (NVR player), EXE (Include player)

General

Environmental Operating Temperature-Humidity : +0°C ~ +40°C (+32°F ~ +104°F)

Operating Humidity : 20% ~ 85% RH

Features

More Images

SRN470D RB 4ch DVR

This product was added to our catalog on Monday 31 March, 2014.
