Samsung SRD-870DC H.264 Digital Video Recorder (8-channel, 250GB  |  Model No: [SRD870DC RB]    Call

Samsung SRD-870DC H.264 Digital Video Recorder (8-channel, 250GB)


Video Inputs 8 Composite video 0.5-1 Vpp, 75 ohm automatic termination
Video Resolution 704x480 NTSC
Frame Rate 240FPS NTSC
Resolution 704x480 NTSC
Display Multi-screen - 1 / 4 / 6 / 8 / 9 / 13 / PIP
Storage 250GB
Operating System Embedded - Linux
Compression H.264
Recording Rate NTSC : Up to 240 fps @ 704 x 480
NTSC : Up to 240 fps @ 704 x 240
NTSC : Up to 240 fps @ 352 x 240
Recording Modes Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (0.9/1.9/3.8/7.5/15/30 fps)
Manual, Schedule (Continuous/Event), Event(Pre/Post), Timelapse (0.8/1.6/3.1/6.2/12.5/25 fps)
Overwrite Modes Continuous
Pre-alarm Up to 30sec (5, 10, 20, 30 sec)
Post-alarm Up to 6 hour. (5,10,20,30 sec,1,3,5,10,20 min,1,2,3,4,5,6hour)
Search Modes Date/time, Event, Back up, Pos, Motion (*All Search Included Preview Function)
Playback Function Fast Forward/Backward , Slow Forward/Backward , Step Forward/Backward
Transmission Speed Up to (15)Mbps, Unlimited(4M)/2/1.5/1 Mbps/800/600/500/40 0/300/200/100/50 kbps
Bandwidth control Automatic
Max. Remote Users Search(3)/Live Unicast(10)/Live Multicast(20)
Multi-stream H.264(4CIF/CIF)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Monitoring Net-i viewer, SVM-S1, Smart viewer, Web viewer
Internal HDD Max 5 internal HDD (HDD x 5)
External HDD Up to 2 expansion bay (up to 4 HDD each)
DVD Writer (Back up) Yes
USB 3 USB ports
File Format Backup - AVI, MDB (DVR play back), EXE (Include player)
Password Protection 1 Admin, 10 Group , 20 User per 1 Group, User can be assigned authority for function
Data Authentication Watermark
VGA Monitor - Analog RGB 800 x 600, 1024 x 768, 1280 x 1024 resolution
HDMI 480p / 720p / 1080p resolution
Composite Main - BNC, 1 Vp-p, 75 ohm
Spot - 1 BNC, 1 Vp-p, 75 ohm, Support multi screen and camera title
Loop Outputs 8
Audio Inputs 8 Line in (Built in 4ch, Option : audio extension cable)
Audio Output 1 Line
Audio Compression ADPCM
Sampling Rate 16KHz
Alarm I/O Terminal 8 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC)
Notification Remote - Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ, System keyboard
USB USB 2.0, 3 ports
eSATA 2 External SATA ports
Application Support Mouse, Remote controller
Communication Protocol Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON
PTZ Control via Coaxial Cable (Samsung CCVC, Coaxitron)
Input Voltage 100 - 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption Max. 55W (With 1x HDD) / Max. 65W (With 2x HDD)
Operating Temperature 0-40°C (32-104°F)
Operating Humidity 20 - 85%RH
Dimensions (WxHxD) 17.3 x 3.5 x 16.9" (440 x 88 x 430 mm)
Weight Approx. 16.1 lb (7.5 kg)
Rack Mount 2 ea. kit
Languages English, Korean, Spanish, French, German, Italian, Portuguese, Polish, Russian, Turkish, Japanese, Czech, Swedish, Danish, Chinese, Dutch


  • D1 Real-time Digital Video Recording
  • H.264 Video Recording Support
  • ADPCM Audio Recording Support
  • Up to 8-channel Audio Inputs
  • BNC & VGA/HDMI Video Output
  • Up to 5 Internal HDD Support
  • HDD/DVD SATA Interface
  • Includes Built-in Web Viewer & DVD-RW
  • DDNS/Event Notifications by Email


    More Images

  This product was added to our catalog on Tuesday 16 July, 2013.
Customers who bought this product also purchased

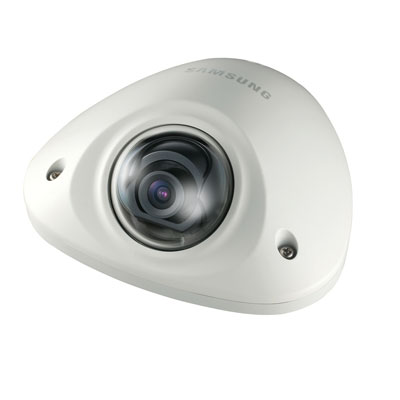

Samsung SCV-2010F CCTV camera with vandal-resistant protection
